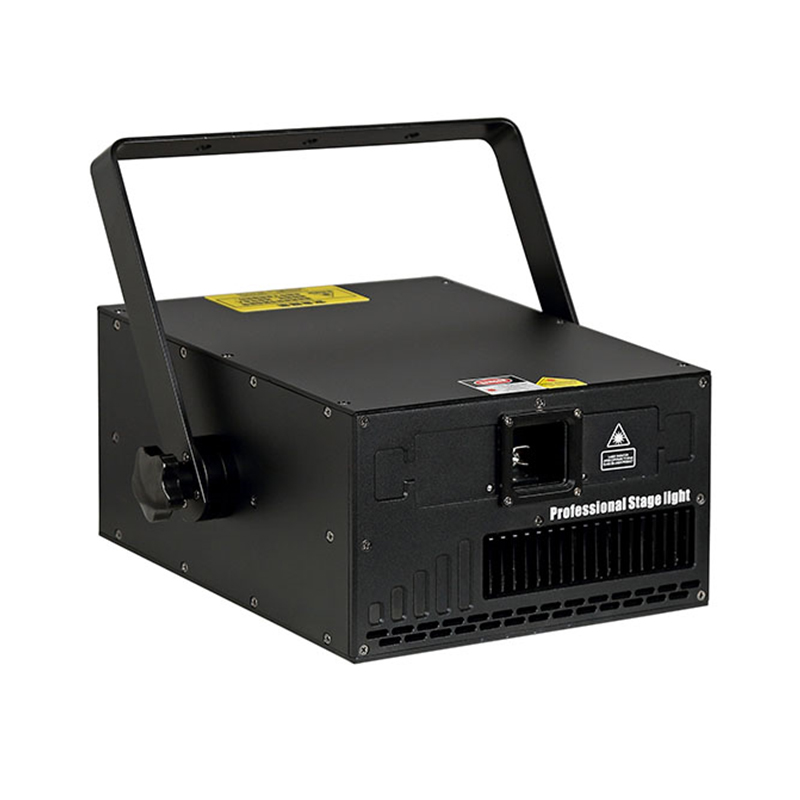

15W full color laser YF-J15000

Short Description:

◎ Working voltage: AC100~240V 50/60Hz; Rated power: 600W

Vibration mirror: 45K high-speed scanning vibration mirror, optical Angle ±30°; Input signal ±5V; Linear distortion < 2%

◎ Laser modulation: analog modulation

◎ Beam diameter and divergence Angle: 6*6.5mm; 1.5 mrad

◎ Control mode: voice control, self-walking, master-slave machine, DMX512, SD card control, ILDA computer laser software

◎ Control interface: DMX512 interface, ILDA DB25 interface, EASY ILDA interface, SD card

Control channel: 5/17/18/27/52CH






Product Detail

FAQ

Product Tags

◎ Working voltage: AC100~240V 50/60Hz; Rated power: 600W

Vibration mirror: 45K high-speed scanning vibration mirror, optical Angle ±30°; Input signal ±5V; Linear distortion < 2%

◎ Laser modulation: analog modulation

◎ Beam diameter and divergence Angle: 6*6.5mm; 1.5 mrad

◎ Control mode: voice control, self-walking, master-slave machine, DMX512, SD card control, ILDA computer laser software

◎ Control interface: DMX512 interface, ILDA DB25 interface, EASY ILDA interface, SD card

Control channel: 5/17/18/27/52CH

◎ Demonstration effect: DMX built-in 160 patterns, SD card unlimited storage, you can choose the scene through DMX or SD card laser show.

DMX special effects: dual pattern mode, can respectively break pen, stroboscopic, rotation, movement, tumbling, subgraph, gradually draw, change color, change size and other functions

◎ Electric control technology: ①RDM data bidirectional transmission ②SD card online upgrade ③ intelligent temperature control system ④DMX512 upgrade

◎ Usage notice: The ambient temperature is controlled in 0~35℃, and the dry and dust-less environment can reduce the laser power attenuation and prolong the life of the lamp

◎ Suitable places: disco bar, bar, nightclub, TV station, advertising promotion, etc

◎ Packing size: 74.5*48*31cm (two pieces) ◎ Net/gross weight: 23/28kg
